Setup Environment For Malware Analysis

As you know when we talk about malware analysis we need an safe environment to run our tools. It’s not a good choice to working in your host main machine for malware analysis. Therefore in this section we want to create a safe environment as much as possible.

The first thing we need is a Linux based virtual machine. I recommend Debian based Linux. Personally my choice is Ubuntu but you are free to choose other distributions. You also need an Hypervisor to run this VM. You can choose between VirtualBox or VMWare Workstation.

For having an android emulator I highly recommend to use Android X86 Virtual Machine. You can use other emulators like Genymotion or Android Studio Emulator but both them are host-only and NAT network type which is a risk for our host machine.

Also there is also CuckooDroid which is a sandbox for Android malware analysis that we may try in the future.

Let’s start 🙂.

1.1. Linux Analysis & Transparent Proxy Virtual Machine

1.1.1. Machine specifications

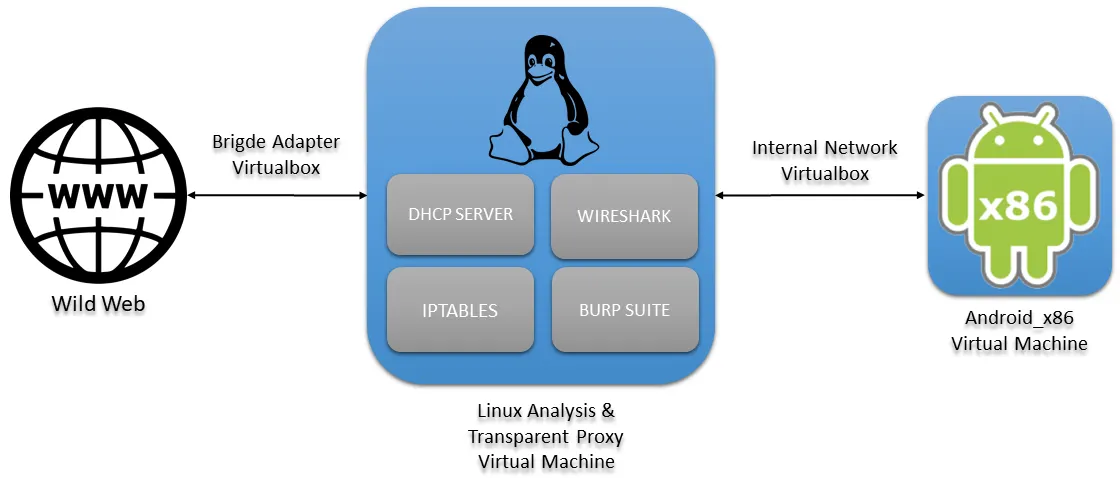

In the center of the previous scheme we will have the analysis machine that through a network interface, in bridge mode, will be connected to the internet (eth0) and through the other interface (eth1) will be connected to the internal network of Virtualbox. Since we are going to run a lot of software at the same time on the analysis machine, we have to dedicate more than 2GB of RAM, in our case 4GB. We also have to add one more interface (eth1) where the DHCP server will be configured and where the Android machine will be connected.

1.1.2. Tools

There are hundreds of tools for both dynamic and static analysis of Android applications. Here is the installation of the tools that we have found most relevant.

Android Studio

Proxy/Sistema:

adb
docker
android-sdk
Java 8
Iptables
isc-dhcp-server

Wireshark

        sudo apt install adb docker docker.io docker-compose android-sdk openjdk-8-jre wireshark -y

Static Analysis:

Jadx

    wget https://github.com/skylot/jadx/releases/download/v1.2.0/jadx-1.2.0.zip
    sudo mv jadx-1.2.0.zip /usr/local/bin/jadx-1.2.0.zip
    sudo unzip /usr/local/bin/jadx-1.2.0.zip -d /usr/local/bin/jadx-1.2.0
    sudo rm /usr/local/bin/jadx-1.2.0.zip
    sudo ln -s /usr/local/bin/jadx-1.2.0/bin/jadx /usr/local/bin/jadx
    sudo ln -s /usr/local/bin/jadx-1.2.0/bin/jadx-gui /usr/local/bin/jadx-gui

Apktool

        wget https://raw.githubusercontent.com/iBotPeaches/Apktool/master/scripts/linux/apktool
        wget https://bitbucket.org/iBotPeaches/apktool/downloads/apktool_2.5.0.jar
        mv apktool_2.5.0.jar apktool.jar
        sudo mv apktool.jar /usr/local/bin
        sudo mv apktool /usr/local/bin
        sudo chmod +x /usr/local/bin/apktool.jar
        sudo chmod +x /usr/local/bin/apktool

Dynamic Analysis:

Frida

        sudo apt install python3-pip
        pip3 install frida-tools

Pidcat (python2 needed)

        wget https://raw.githubusercontent.com/JakeWharton/pidcat/master/pidcat.py

        chmod +x pidcat

        mv pidcat /bin/

Burp: download from official site.

        chmod +x burpsuite_community_linux_v2020_12_1.sh

        ./burpsuite_community_linux_v2020_12_1.sh

Hybrid

Mobsf

        sudo docker pull opensecurity/mobile-security-framework-mobsf
        echo “alias mobsf=’sudo docker run -it -p 8000:8000 opensecurity/mobile-security-framework-mobsf:latest'” >> ~/.bashrc

1.1.3. DHCP server installation and configuration

To install:

sudo apt install isc-dhcp-server

Add the interface, in the file /etc/default/isc-dhcp-server, where you want to let the DHCP running. Modify the line INTERFACESv4="" to INTERFACESv4="eth1"

Then in the file /etc/dhcp/dhcpd.conf it must be modified as follows:

option domain-name-servers 8.8.8.8, 1.1.1.1;
default-lease-time 600;
max-lease-time 7200;
ddns-update-style none;
authoritative;

subnet 10.0.0.0 netmask 255.255.255.0 {
    range 10.0.0.10 10.0.0.20;
    option domain-name-servers 8.8.8.8;
    option subnet-mask 255.255.255.0;
    option routers 10.0.0.1;
    option broadcast-address 10.0.0.255;
    default-lease-time 600;
    max-lease-time 7200;
}

It is highly recommended to disable network-manager: service network-manager stop. Also install net-tools and ifupdown for the configuration of the network interfaces, which sometimes does not come with some distros.

For our eth1 interface to work, it must have an IP. We set it in /etc/network/interfaces as follows:

auto eth0
iface eth0 inet dhcp
auto eth1 iface eth1
inet static address 10.0.0.1
netmask 255.255.255.0

And now restart the service: service isc-dhcp-server restart

1.1.4. Transparent Proxy with iptables

First we clean up the rules, to make sure we start from zero:

iptables -F
iptables -X
iptables -Z
iptables -t nat -F

We set the default policy:

iptables -P INPUT ACCEPT
iptables -P OUTPUT ACCEPT
iptables -P FORWARD ACCEPT
iptables -t nat -P PREROUTING ACCEPT
iptables -t nat -P POSTROUTING ACCEPT

First we have to enable traffic forwarding through the machine with:

We will post the other rules later:

echo 1 > /proc/sys/net/ipv4/ip_forward

## FORWARD CHAIN
iptables -A FORWARD -i enp0s3 -o enp0s8 -m state –-state ESTABLISHED,RELATED -j ACCEPT
iptables -A FORWARD -i enp0s8 -o enp0s3 -m state -–state NEW -j ACCEPT

## NAT
iptables -t nat -A POSTROUTING -o enp0s3 -j MASQUERADE

## HTTP and HTTPS for Burpsuite
iptables -t nat -A PREROUTING -p tcp –-dport 80 -j REDIRECT --to-port 8080
iptables -t nat -A PREROUTING -p tcp –-dport 443 -j REDIRECT --to-port 8080

We will configure Burp later to finish configuring the proxy, but now let’s go to the Android machine.

1.2. Android_x86 Virtual Machine

Download the Android-x86 version from the official site. A 64-bit version is strongly recommended. The steps to install these systems in Virtualbox are described in the following link.

To make a quick summary of what is indicated in the link:

Create a virtual machine of Linux type and Linux version 2.6/3.x/4.x (64bits).
Dedicate more than one processor to the machine.
Important step: It is mandatory to configure VBoxVGA instead of VBSVGA in the Display options dialog box.

Then some options that we added for the lab:

Also add as much video memory as possible (128MB).
In the network interfaces, leave only one, in internal_network mode with the same name as the proxy’s internal_network (they will be on the same network).

Boot the machine with the downloaded .iso disk. The operating system installation wizard will start. From here you have to follow the next steps:

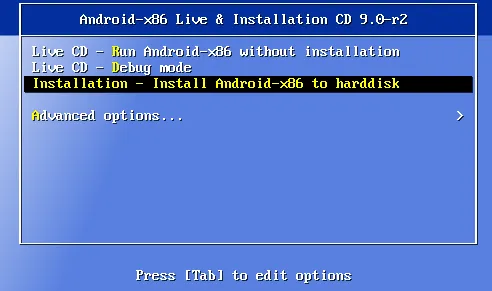

Choose the option “Installation – Install Android-x86 to harddisk”.
On the question of the use of GPT choose no

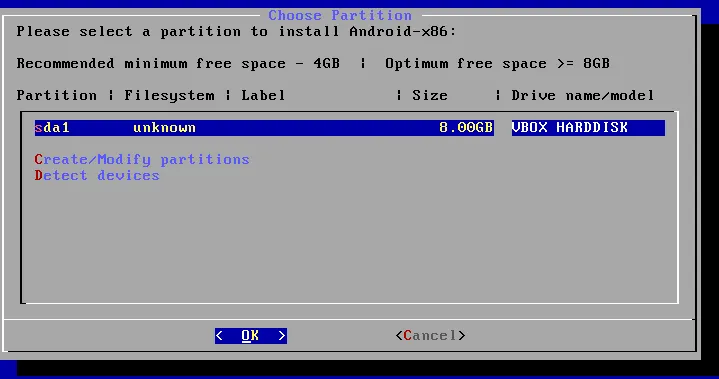

Now you have to create a partition. Press New>Primary>Select the whole disk>Bootable>Write>Confirm and wait, then Quit
Select the new partition we have just created, choose the “ext4” format, then confirm.
To the GRUB installation question choose yes.
Important step: When asked whether to install the /system directory as read-write choose yes.

And Android will then be finally installed in a VirtualBox virtual machine.

2. Burp Suite and CA install

We are going to use the Burp Suite Community version as a web proxy for viewing HTTP/S calls. In order to work with Burp Suite as a transparent proxy on Android you have to install the Burp certificate as a Root CA. To do this you need to follow the steps below:

Open Burp
Import the certificate in .cer format from Burp. Proxy>Options>Import/export CA certificate> Select the option “Certificate in DER format”> Save in the desired location.

Execute in bash to install the certificate (replace with the variables between <>):

    openssl x509 -inform DER -in <CERTIFICATE_BURP> -out cacert.pem
    hash=`openssl x509 -inform PEM -subject_hash_old -in cacert.pem | head -1`
    cert_hash=$hash.0
    mv cacert.pem $cert_hash
    adb connect <IP_ANDROID_MACHINE>
    adb root
    adb connect <IP_ANDROID_MACHINE>
    adb remount
    adb push $cert_hash /sdcard/
    adb shell “mv /sdcard/$cert_hash /system/etc/security/cacerts/”
    adb shell “chmod 644 /system/etc/security/cacerts/$cert_hash”
    adb shell “reboot”

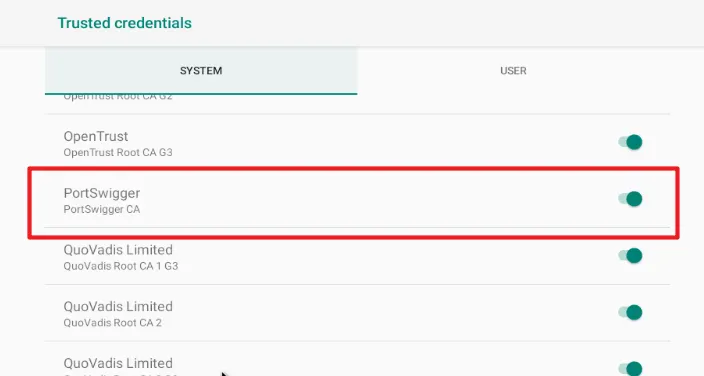

If we go to Settings on the Android machine and look for the “Trusted credentials” section we can see how our certificate has been installed as the system CA:

The proxy also has to be configured in Burp.
- In the Proxy>Intercerpt tab, turn off intercerpt for now.
- Then in Proxy>Options>Proxy Listeners>Add
- In Bind to port: 8080
- In Bind to address: All interfaces
- In the “Request handling” tab of the same window enable the option “Support invisible proxying (enable only if needed)”.

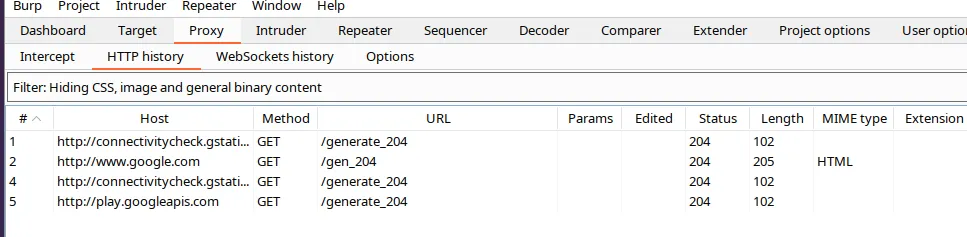

  Burp would already be listening on port 8080 for all HTTP/S requests that it will receive thanks to the Iptables rules that we have configured previously:

  NOTE: It is possible that HTTP/S requests are made through ports that are not the common ones and in our case we have only added to Iptables the requests that have port 80/443 as destination. In this case, it would be necessary to look at the Wireshark frames and detect which ports are used and then add a rule to Iptables with this port.

  In coming articles of this series we will be looking at examples of malware that use specific techniques, theory or tools that we find interesting.
