Pocket CTF Box: Hex Speak - Cryptography Writeup Report

SHADOW120

Pocket CTF Box: Hex Speak - Cryptography Writeup Report

Case ID: BB-CRYPTO-2026-0201
Classification: Cryptography - Obfuscated Flag Recovery (XOR + Hex Encoding)
Evidence: dump_hard.txt
Date of Analysis: 2026-02-01
Challenge Link: https://learn.hacklido.com/challenges/hex-speak

1. Executive Summary

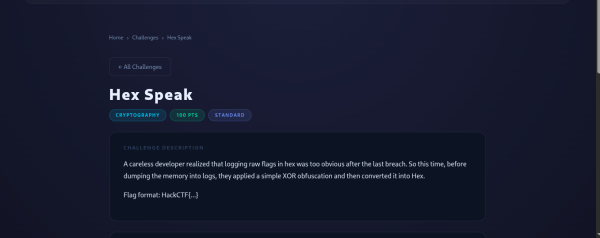

A system log entry captured a suspicious memory dump containing an obfuscated string. Per the log’s own note, the flag was XOR-obfuscated before being hex-encoded, in an attempt to avoid the “too obvious” mistake of logging a flag in plain hex after a prior breach. Reversing both layers, hex decode followed by a single-byte XOR brute force, recovers the original flag.

Verdict: Recovered flag is HackCTF{m3m_l34k_r3v3rs3}, obtained with XOR key 0x13.

2. Tools Used

Tool	Purpose
Python 3 (`bytes.fromhex`)	Hex decoding of the dumped string
Python 3 (brute-force loop)	Single-byte XOR key recovery
CyberChef (`From Hex` + `XOR Brute Force`)	Alternative no-code verification path, per the challenge’s own hints

3. Methodology - Step by Step

Step 1: Identify the encoding layers

The log entry itself gives this away directly:

NOTE:
Developer tried to hide sensitive flag using XOR before dumping into hex.

So the transformation chain applied to the original flag was:

plaintext flag -> XOR with single-byte key -> hex-encode -> logged as DEBUG_SECURE_DUMP

To recover the flag, the same steps must be reversed in the opposite order: hex-decode first, then XOR-decode.

The dumped string, confirmed by Hint 1 and Hint 2 to be standard hex (two characters per byte), is:

5B727078504755687E207E4C7F2027784C612065206160206E

Step 2: Hex-decode the dumped string

hex_str = "5B727078504755687E207E4C7F2027784C612065206160206E"
data = bytes.fromhex(hex_str)
print(data)

Output:

b"[rpxPGUh~ ~L\x7f 'xLa e a` n"

This is 26 bytes of unreadable, XOR-scrambled data, confirming the hex layer decodes cleanly but a second layer of obfuscation (the XOR) is still in place underneath it.

CyberChef equivalent: drop the hex string into the input, add a From Hex operation, and observe the same garbled 26-byte output.

Step 3: Brute-force the single-byte XOR key

Since the note specifies “a simple XOR obfuscation,” a single repeating byte key is assumed rather than a multi-byte key. All 256 possible byte values (0x00 to 0xFF) are tried against the decoded bytes, and the output is checked for a readable flag pattern:

for k in range(256):
    out = bytes([b ^ k for b in data])
    if b"HackCTF" in out:
        print(k, out)

Output:

19 b'HackCTF{m3m_l34k_r3v3rs3}'

Key 19 (0x13) is the only value out of all 256 that produces a clean, readable ASCII string beginning with HackCTF{, every other key produces unprintable or nonsensical output. This confirms 0x13 as the correct XOR key.

CyberChef equivalent: after From Hex, chain an XOR Brute Force operation with a HackCTF crib string set as the search filter, it will highlight key 13 (hex) as the matching result. Alternatively, add a manual XOR operation with key 13 (hex) directly after From Hex once the key is known.

Step 4: Recover the flag

hex_str = "5B727078504755687E207E4C7F2027784C612065206160206E"
data = bytes.fromhex(hex_str)
flag = bytes([b ^ 0x13 for b in data])
print(flag.decode())

Output:

HackCTF{m3m_l34k_r3v3rs3}

4. Consolidated Findings

| Step | Value |
|—|—|
| Raw dumped string | 5B727078504755687E207E4C7F2027784C612065206160206E |
| After hex decode | [rpxPGUh~ ~L\x7f 'xLa e a n(unreadable) | | XOR key recovered |0×13(decimal 19) | | Recovered flag |HackCTF{m3m_l34k_r3v3rs3}` |

5. Recommendations

Never log sensitive values, even obfuscated ones, XOR with a single repeating byte is trivially brute-forceable (only 256 possibilities) and offers no real security, only a false sense of one.
If obfuscation of logged data is unavoidable, use a proper encryption scheme (e.g. AES-GCM) with a securely managed key, not a reversible bitwise transform.
Treat any “DEBUG” or diagnostic dump path as a potential data-leakage vector; ensure secrets are redacted before they ever reach a log sink, rather than relying on obfuscation after the fact.
Rotate any credential or flag value that was exposed through this log, since the encoding was reversible with negligible effort.
